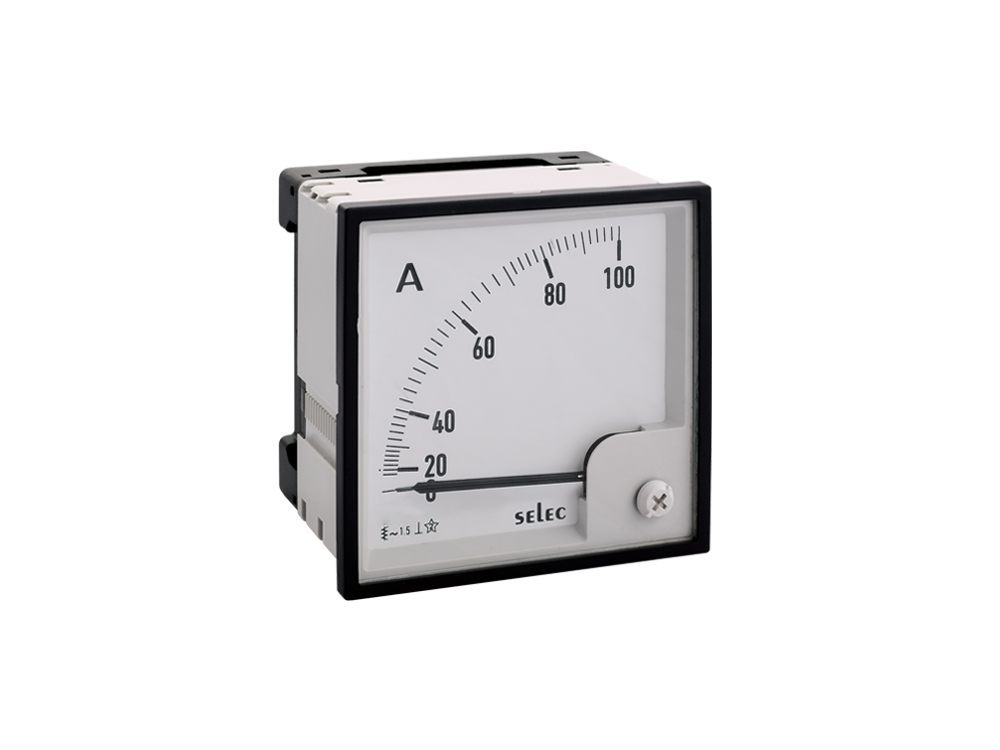

AM-I-3-Analog ammeter, 1Ø, 96X96mm
- Accuracy class of 1.5% of F.S
- Knife edge pointer
- Moving iron type
- Panel mount
- 0° to 90° deflection
- Non linear operation
- Overload Capacity of 1.2 times of Rated current and has up to 10 times of rated current for max of 5 sec
- Power Consumption is 0.8VA
Description
| Pointer | Knife Edge Pointer |
| Pointer Deflection | 0 to 90 degree |
| Measured Parameters | AC Current |
| Measuring Current Range | 0 to 4000A |
| Overload Capacity Continuously | 1.2 times rated Current |
| Frequency | 50 – 60 Hz |
| Accuracy | Class 1.5 |
| Mounting | Panel Mount |
| Size | 96X96mm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity (non – condensing) | upto 75% |
Brand
Selec
