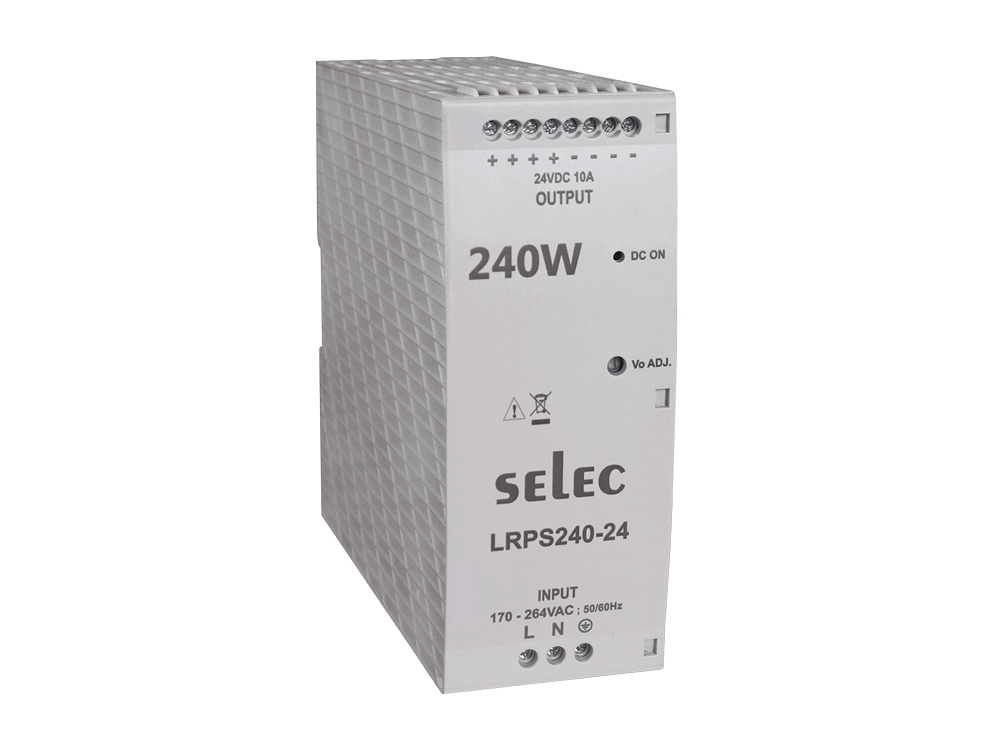

LRPS240-DIN RAIL MOUNT ECONOMIC 240W POWER SUPPLY
- Low Cost CVCC Power Supply
- Efficiency up to 87%
- Designed to meet UL 508 & IEC 62368-1
- Cooling by built-in DC Fan
Description
| Input Voltage | 170 – 264 VAC (240 – 370 VDC) |
| Input Frequency | 50/60 Hz |
| Inrush Current | < 60 A; Measured at 264 VAC, 25°C Ambient, Cold start |
| Output Voltage | 24V & 48V |
| Output Power | 240 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | ± 1 % |
| Load Regulation | ± 1 % |
| Turn On Time | < 3 sec, full load |
| Hold Up Time | > 30 m sec at 230 VAC, Full Load |
| Rise Time | < 100 ms |
| Overload Protection | 11 A to 11.5 A of Constant Curre nt type down to 18 VDC output;Hiccup mode for heavy overload ; Autorecovery |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
| Operating Temperature | – 25°C to + 70°C; De-rate linearly above 50°C from 100 % load at 50°C to 50 % load at 70°C, – 25°C to 0°C startup is guaranteed with specification deviation ( Output ripple can be more than 10 % of the output voltage. ) |
| Storage Temperature | -40°C to +85°C |
| Cooling | Cooling by Built-in DC Fan |
| Humidity | 5 to 95 % RH, Non condensing |
| Altitude | 2000 m |
| Dimension | 60 x 154 x 158.55 mm(W x H x D) |
| Weight | 680 gms |
| Mounting | 35 mm DIN Rail |
Brand
Selec
