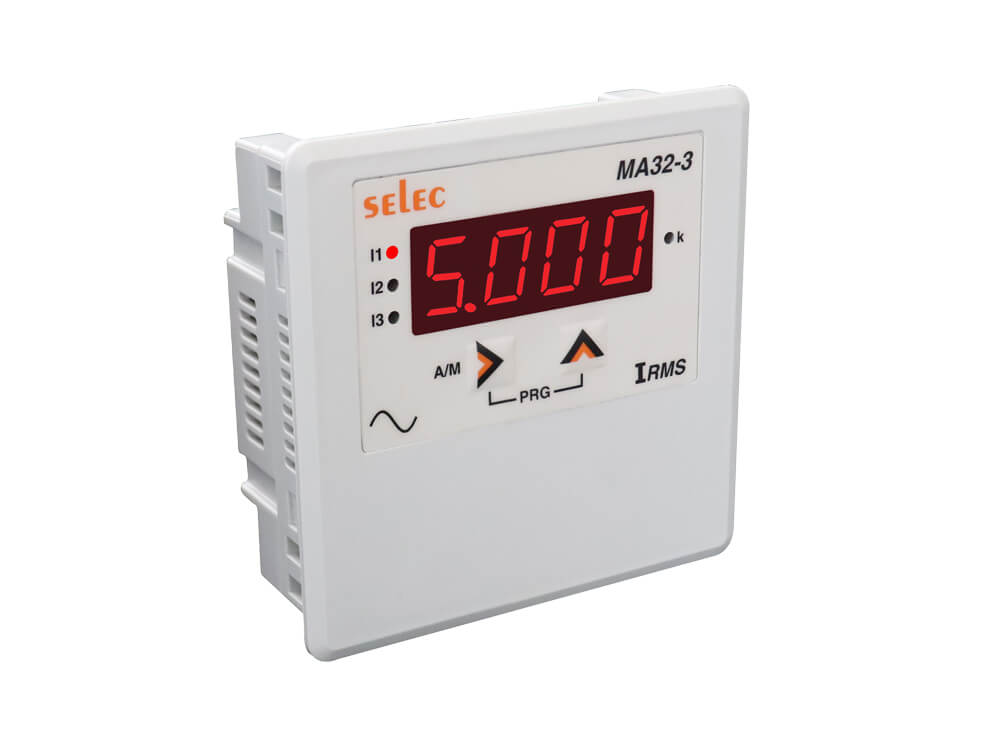

MA32-Digital ammeter with wide Aux supply
- 1 phase & 3 phase measurement for current
- 50mA to 5A measurement, 999.0kA measurement using suitable current transformer
- Accuracy of ± 0.5% of F.S.
- 4 Digit 7 segment LED display
- Panel mount.
- Supply voltage of 40 to 300 V AC/DC
Description
| Display | 7 segment LED Display |
| Digits | 4 |
| Electrical Connection | 3Ø – 4 Wire, 3Ø – 3 Wire, 1Ø – 2 Wire (MA32-1-G-40/300V-CE for single phase only) |
| Rated input voltage | 50mA – 5A AC |
| Accuracy | ±0.5% of Full scale |
| Auxiliary Supply | 40V to 300V AC / DC |
| PT Primary Setting | 1-999kV (Programmable for any value) |
| PT Secondary Setting | 1 / 5A (Programmable) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Storage Temperature | -20°C to +75°C (-4°F to 167°F) |
| Mounting | Panel mount |
| Bezel size | 96 mm x 96 mm |
| Weight | 165 gms |
Brand
Selec
