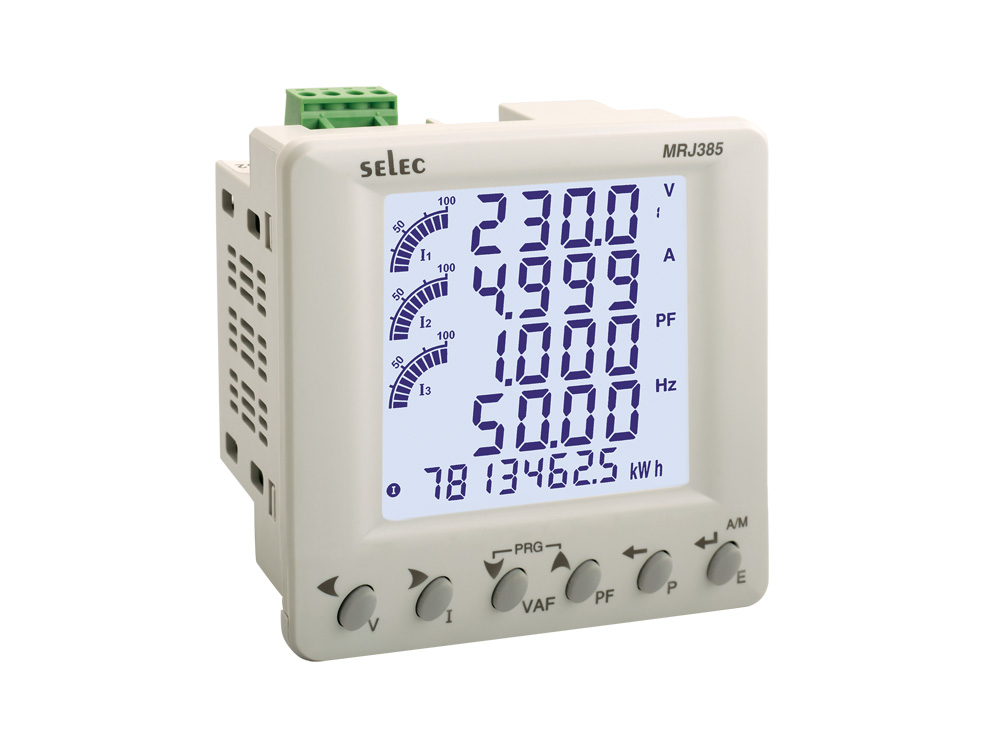

MRJ385-Single Channel, Panel mount Multifunction Meter
- Compatible with 1 phase 2 wire, 3 phase 4 wire systems
- Bar-graph for current indication, Max / Min Demand measurement for Power, % THD up to 31st level for Voltage and Current

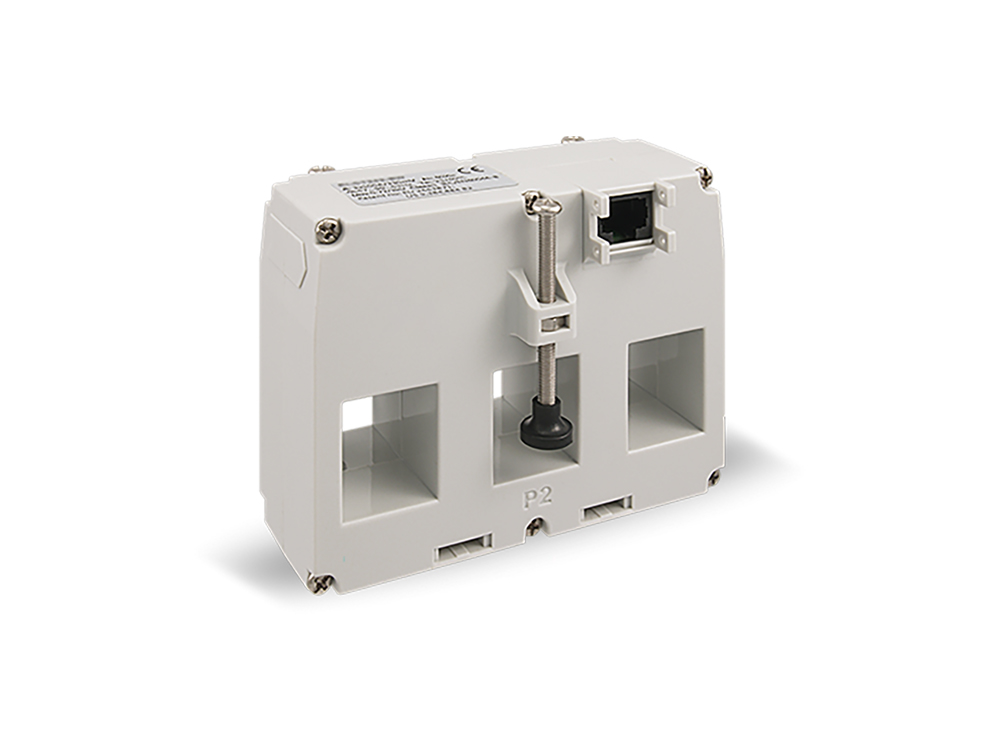

- Single Channel, Plug-n-wire current transformer input
- 100 to 240V (L-N), 173 to 415 (L-L) measurement
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 1% for Power and energy, 0.01 digit for PF
- Auxiliary Supply of 60 to 300V (L-N), Self powered
- Pulse output and RS485 Modbus communication
- CE RoHS & MID Certified
Description
| Display Type | LCD With Backlight, Bargraph Representation for Current |
| Display Configuration | 4 rows of 4 digits,1 row of 8 digits for Energy display |
| Electrical Connection | 3Ø – 4W, 1Ø – 2W |
| Type of Output | Pulse Output |
| Features | Phase Angle Detection, RJ45 Connector Current Input, %THD up to 31st Level, Energy (Active / Reactive / Apparent), Import / Export Energy, Max Demand Power |
| Communication Protocol | RS485 and MODBUS RTU |
| CT Primary | 5A to 10,000A (Programmable for Any Value) |
| CT Secondary | 330mV (Programmable) |
| PT Primary | 100V to 500kV (Programmable for Any Value) |
| PT Secondary | 173 to 415V AC (Programmable for Any Value) |
| Rated Input Voltage | 100 to 240V AC (L – N), 173 to 415V AC (L – L) |
| Supply Voltage | Self Supplied (V1, N), 60 to 300V AC (45/65Hz) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE, MID |
Brand
Selec
