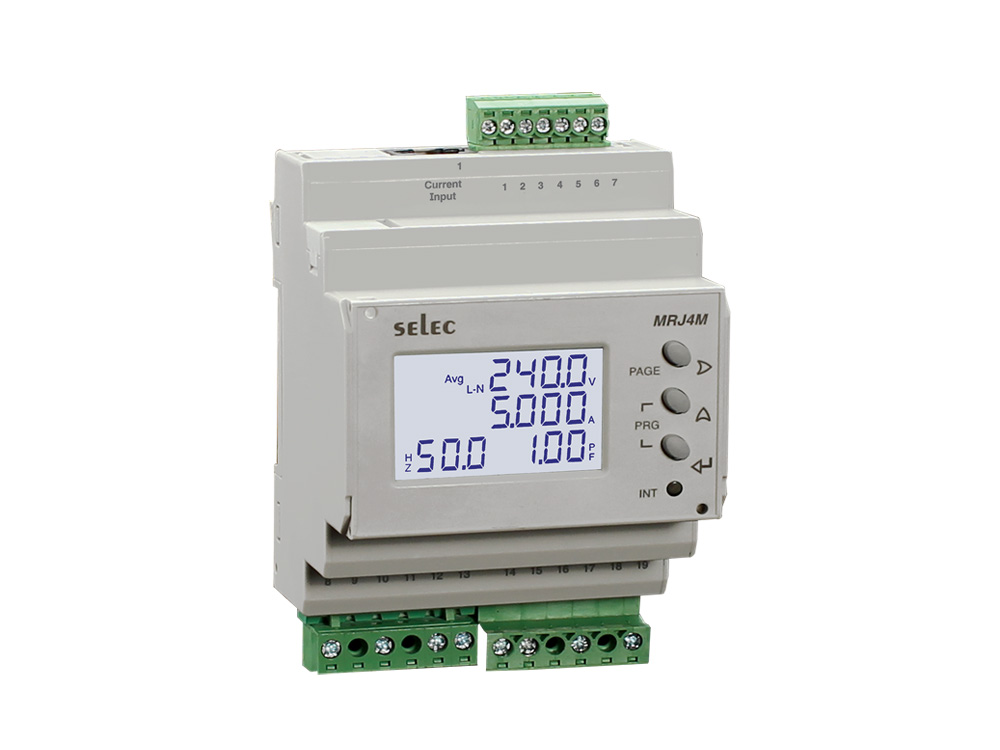

MRJ4M-Single Channel, Rail Mount Multifunction Meter
- Compatible with 1 phase 2 wire, 3 phase 4 wire systems
- Single Channel, Plug-n-wire current transformer input
- 60 to 300V AC (L – N), 104 to 520V AC (L – L) measurement
- Accuracy of ± 0.5% for voltage & current, 0.1% for Frequency, 1% for Power and energy, 0.01 digit for PF
- Auxiliary Supply of 60 to 300V (L-N), Self powered
- Max Demand measurement for Power
- Pulse output and RS485 Modbus communication
- CE RoHS & MID Certified
Description
| Display Type | LCD with Backlight |
| Display Configuration | 2 Rows of 4 Digits, 1 Row of 7 Digits |
| Electrical Connection | 3Ø – 4W, 1Ø – 2W |
| Type of Output | Pulse Output |
| Features | RJ45 Connector Current Input, Self-Powered, Energy (Active / Reactive), Max Demand Power |
| Communication Protocol | RS485 and MODBUS RTU |
| CT Primary | 5A to 10kA (Programmable for Any Value) |
| CT Secondary | 330mV |
| PT Primary | 100V to 10kV (Programmable for Any Value) |
| PT Secondary | 100V to 500V AC (L – L) (Programmable for Any Value) |
| Rated Input Voltage | 60 to 300V AC (L – N), 104 to 520V AC (L – L) |
| Supply Voltage | Self Supplied (V1, N), 60 to 300V AC (45/65Hz) |
| Size | 70 x 90mm |
| Mounting Type | Din Rail Mount |
| Certification | CE RoHS & MID |
Brand
Selec
