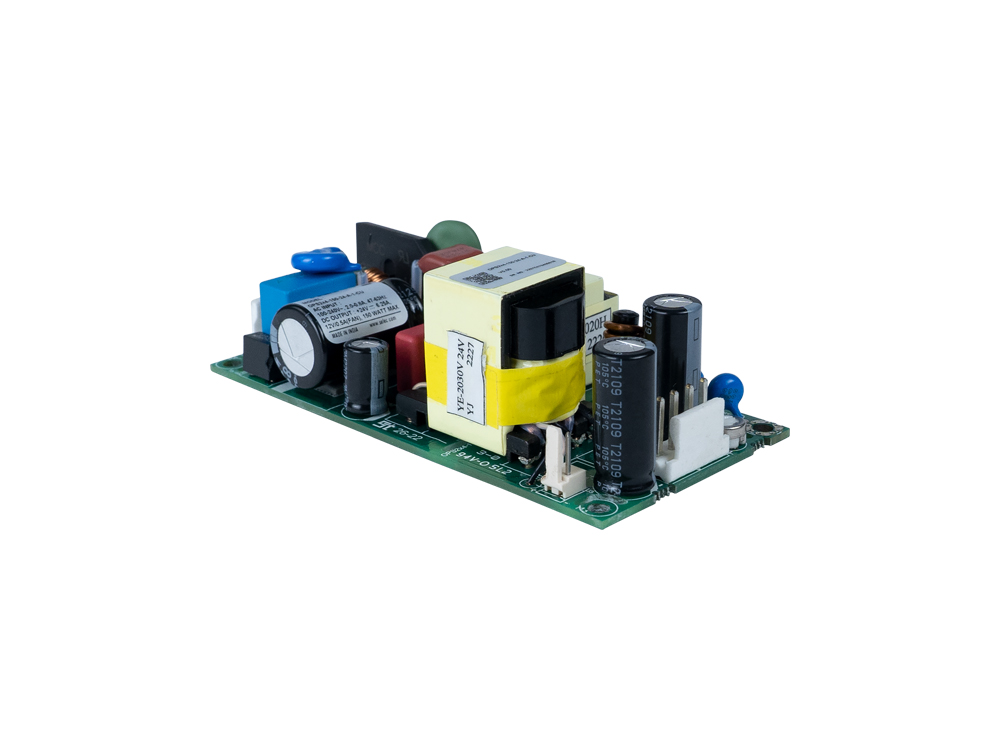

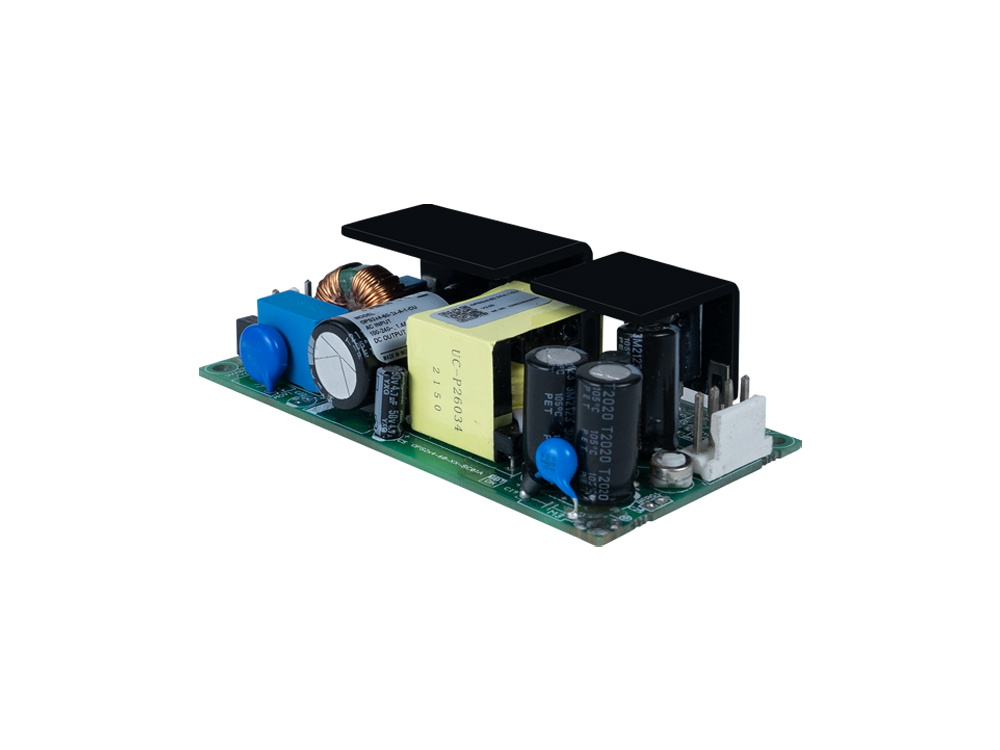

OPS2x4-60-OPS 60W Series
- 4 x 2 x 1.16 Inches Form factor
- 60 Watts Convection
- Efficiencies up to 87 %
- -40°C to + 70°C operating temperature
- Medical (BF) Safety Approvals
- No Load Power < 0.5W
- Approved to Household, ITAV and Medical standards
Description
| Input Voltage | 90 – 264 VAC (127 – 370 VDC) |
| Input Frequency | 47 – 63 Hz |
| Inrush Current | < 60 Amps; Measured at 264 VAC, 25°C Ambient, Cold start |
| No Load Power | < 0.5 W ; 115 VAC input |
| Output Voltage | 5 V to 48 V |
| Output Power | 60 W |
| Voltage Tolerance | ± 1 % |
| Line Regulation | < 1% of Vout |
| Load Regulation | ± 1 % |
| Turn On Time | < 3 sec @ Full load |
| Hold Up Time | ≥60ms at 230V AC & ≥15ms at 115V AC, Full load |
| Rise Time | < 100 ms |
| Overload Protection | > 110% of rated output current; Hiccup type; Autorecovery |
| Overvoltage Protection | Latched type; Input AC power to be recycled to recover the power supply |
| Output Short Circuit Protection | Hiccup mode when output is shorted; Autorecovery type |
| Over Temperature | Power supply shuts down when the temperature of PCB below main transformer reaches typically 120°C |
| Operating Temp | -40°C to +70°C; De-rate linearly above 50°C from 100% load at 50°C to 50% load at 70°C Note : Only start up guaranteed at -40°C with spec deterioration |
| Storage Temp | – 40°C to + 85°C |
| Cooling | Natural convection cooled |
| Humidity | 5 to 95 % RH, Non condensing |
| Altitude | 2000 m |
| Dimension | 4” x 2” x 1.16” (L x W x H); Height above PCB: 1” |
| Weight | < 150 gms |
| Mounting | Open Frame |
Brand
Selec
